Images are of our production units that may have optional equipment installed not included in the base unit.

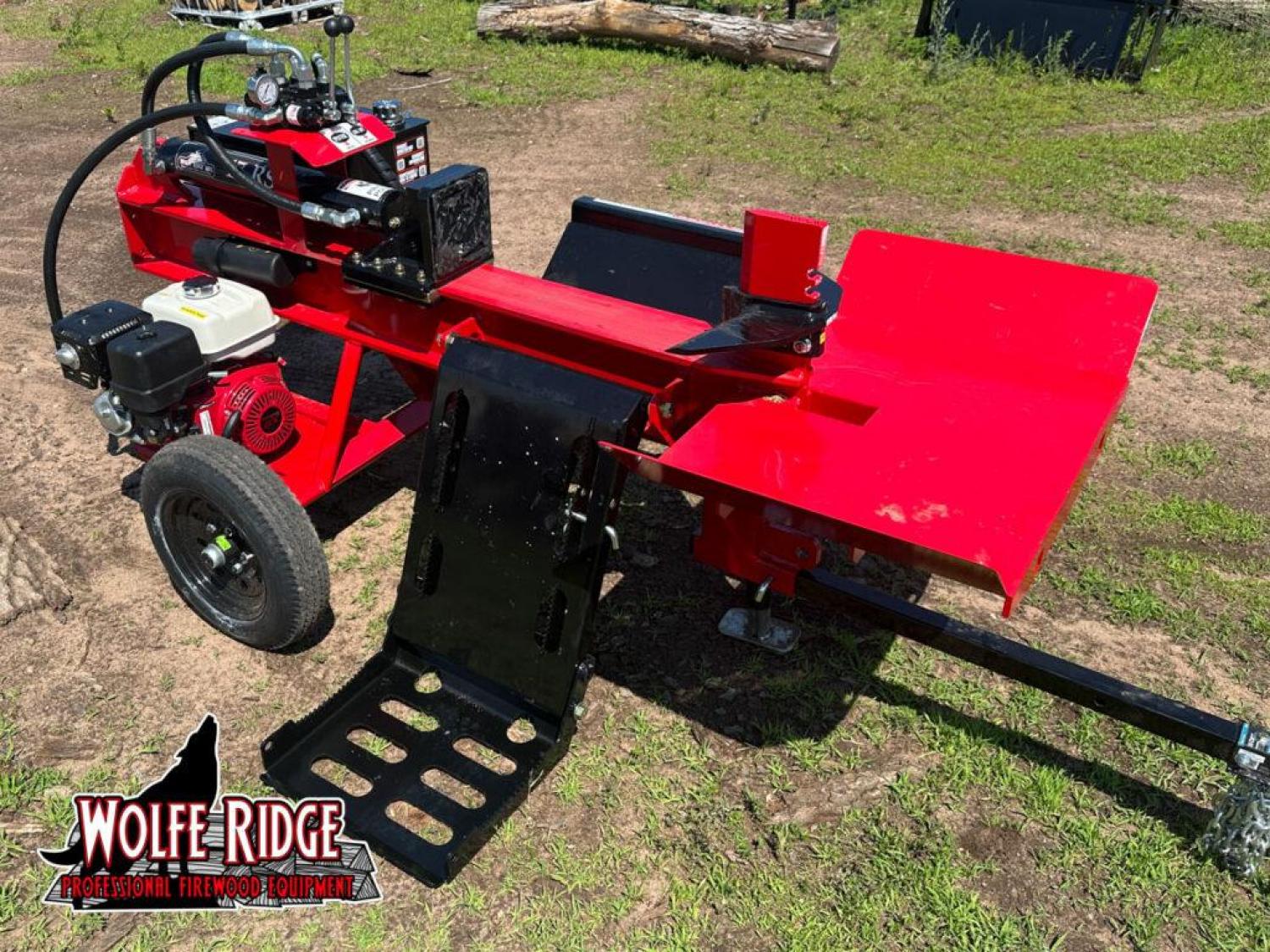

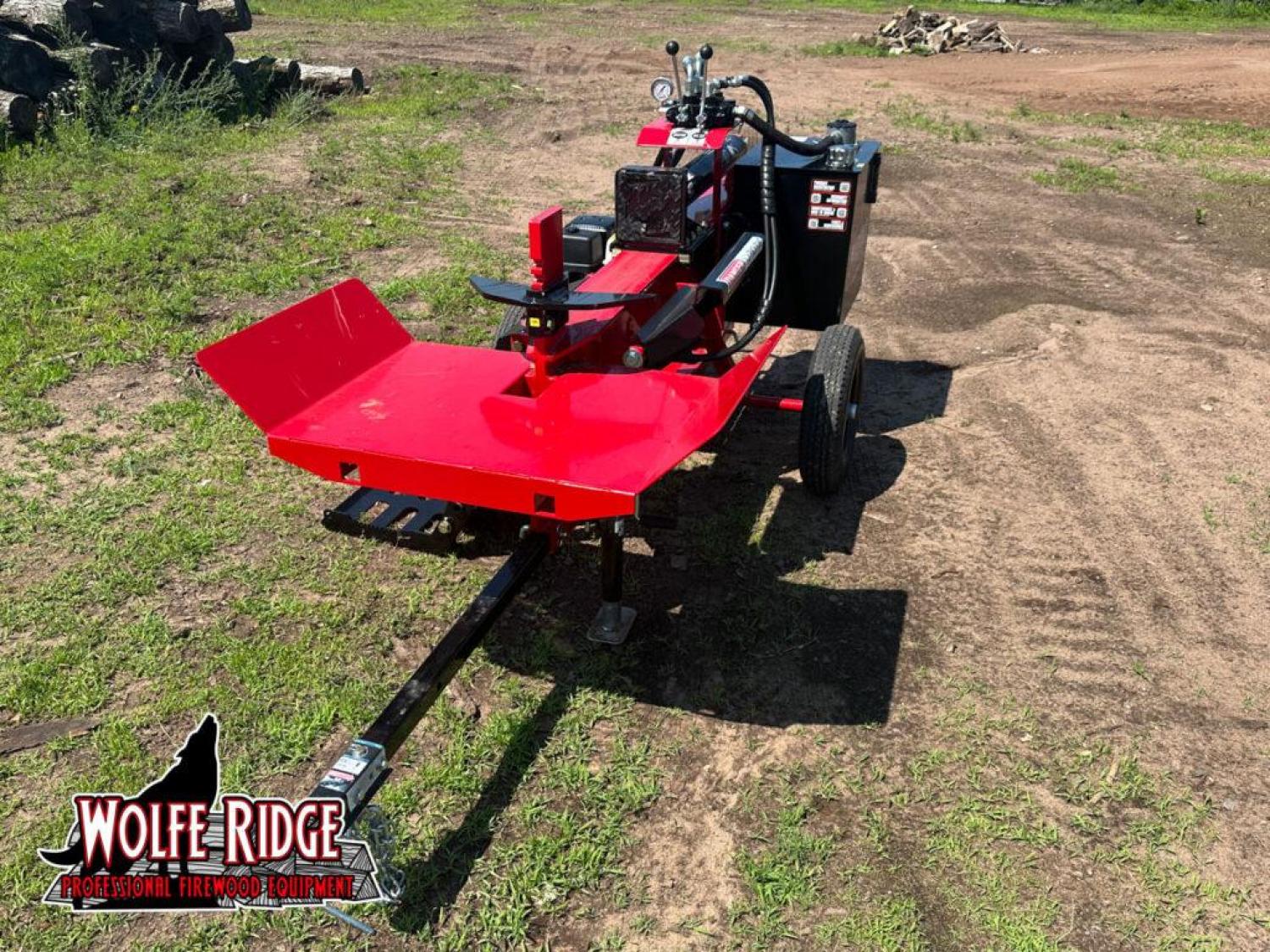

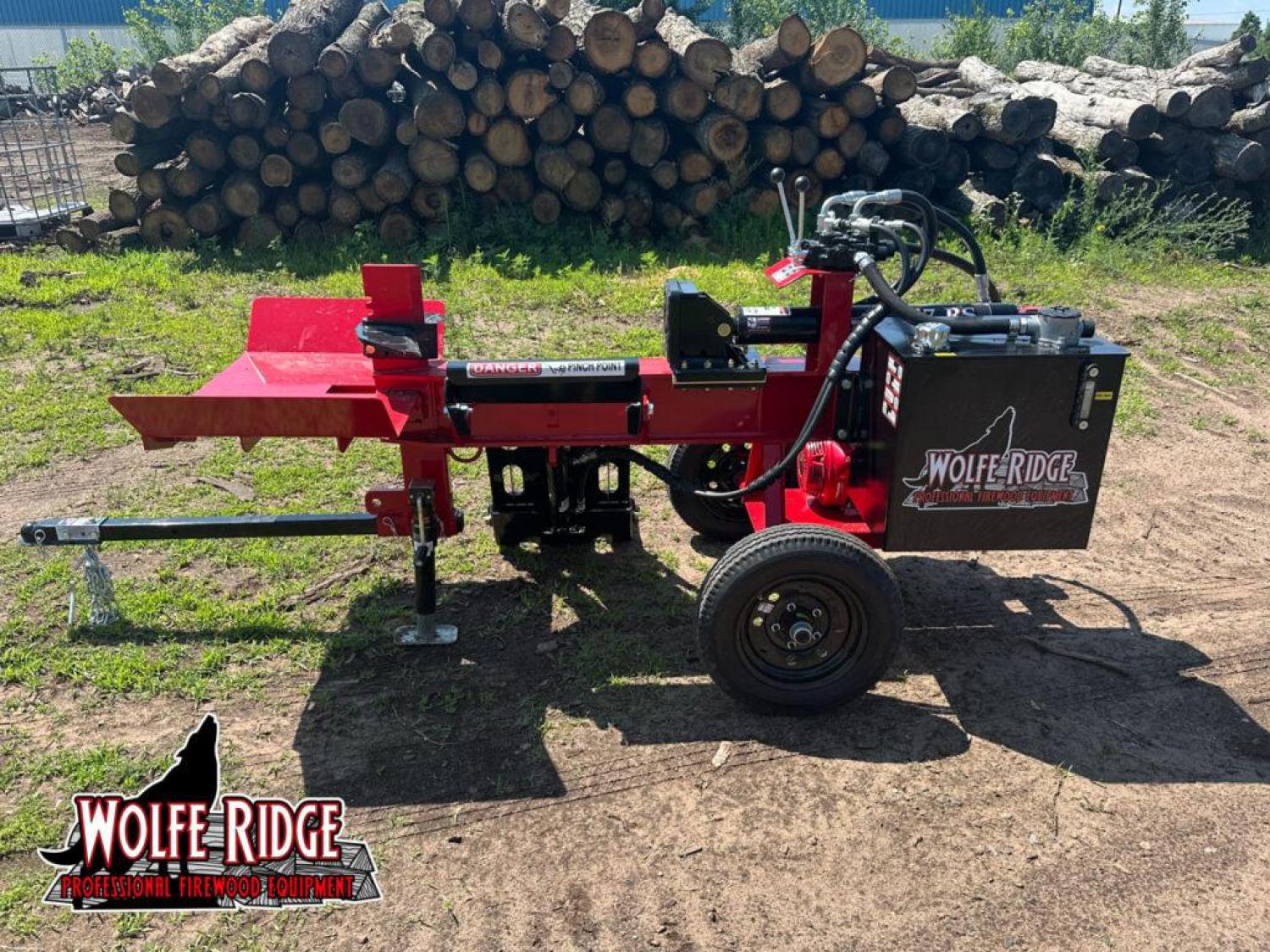

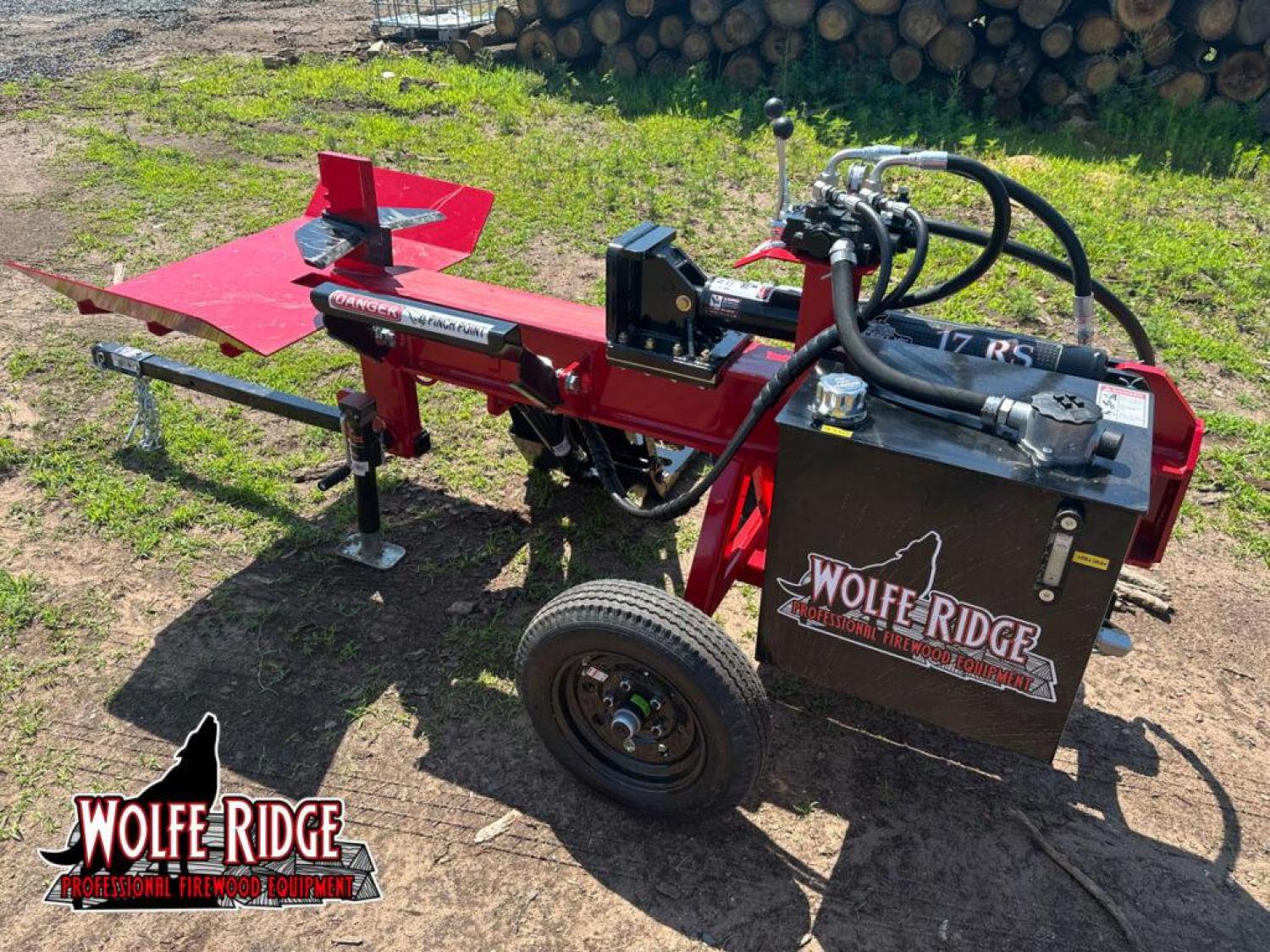

Coming September 2026 - 17 XSL Log Splitter
- 17-ton splitting force
- Super fast 4.5 second cycle time
- Compact design for easy transport and storage
- Powerful Honda engine for consistent performance

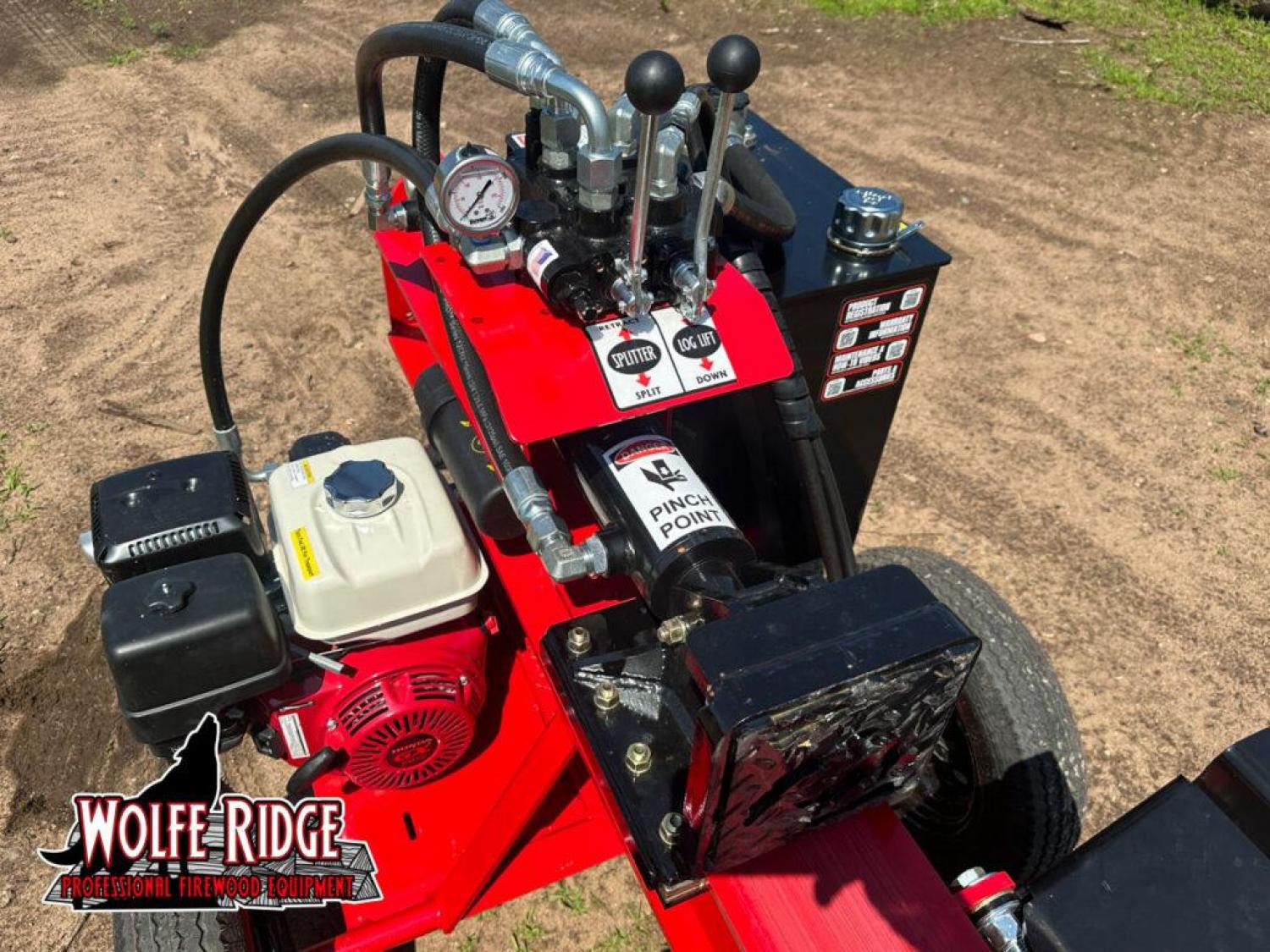

- Easy-to-use controls – Made in USA Prince hydraulic valves

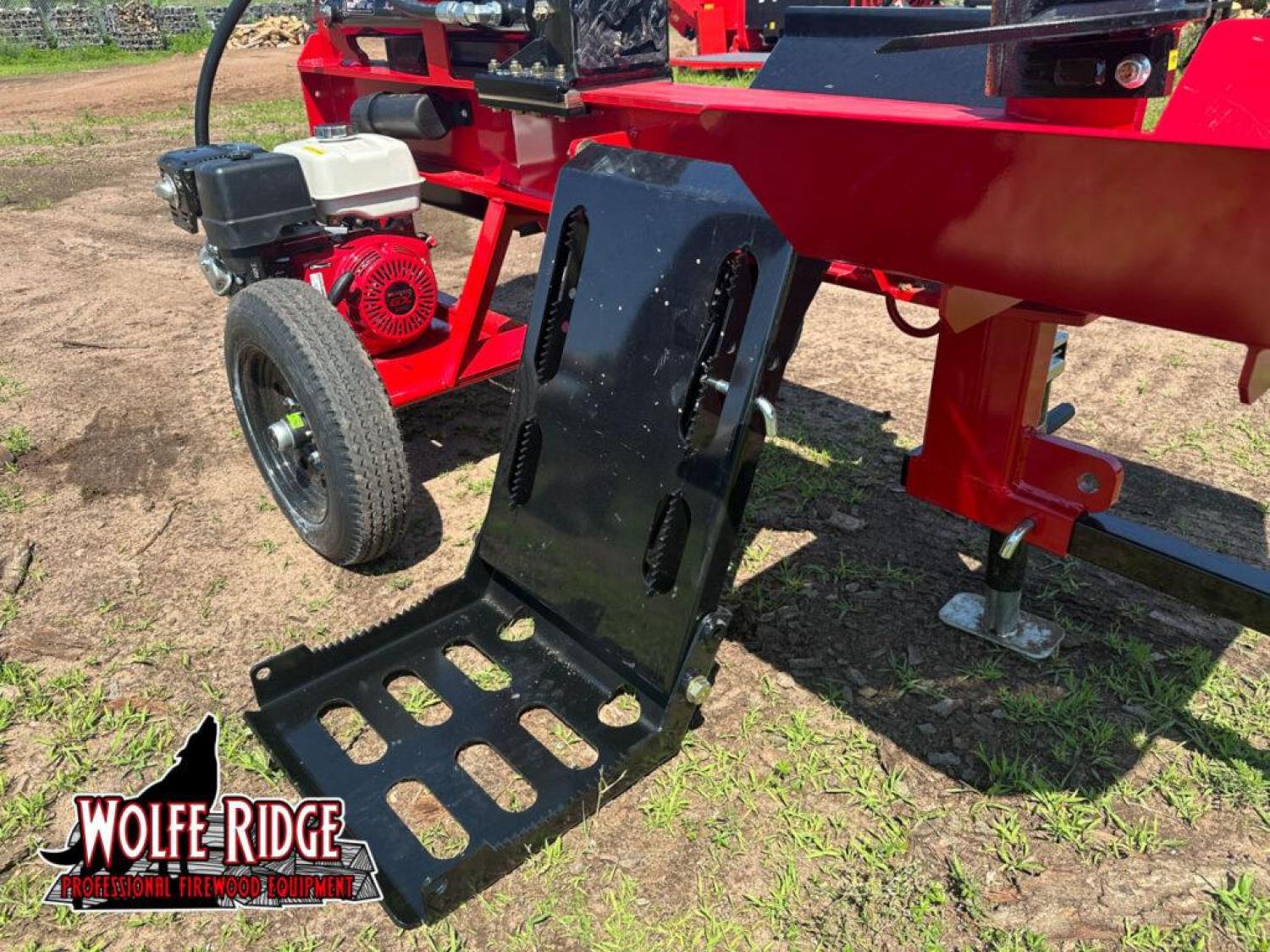

- Available with REVERSIBLE Hydraulic log lift OR Auto Cycle valve

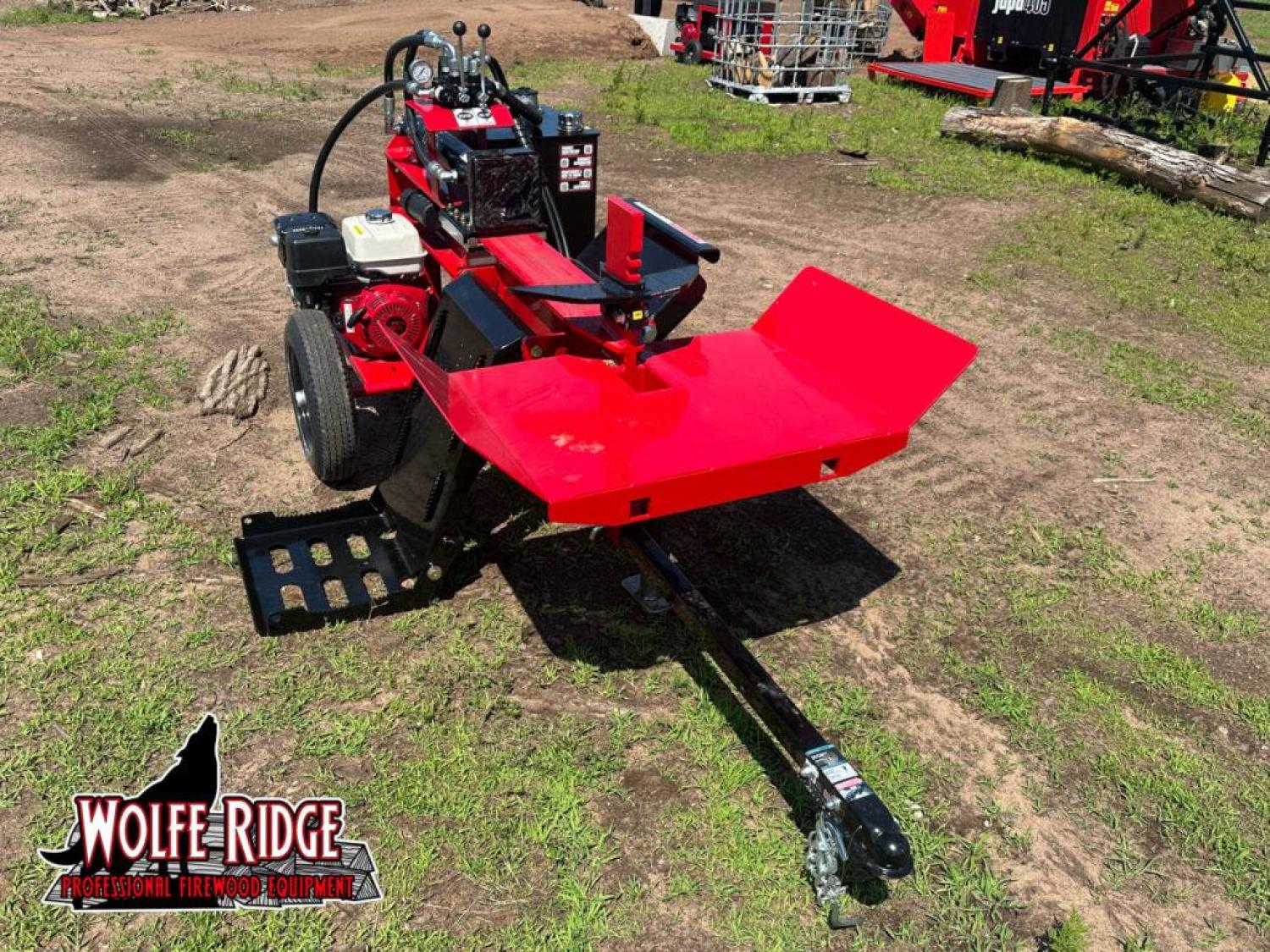

- REVERSIBLE multi-position log cradle

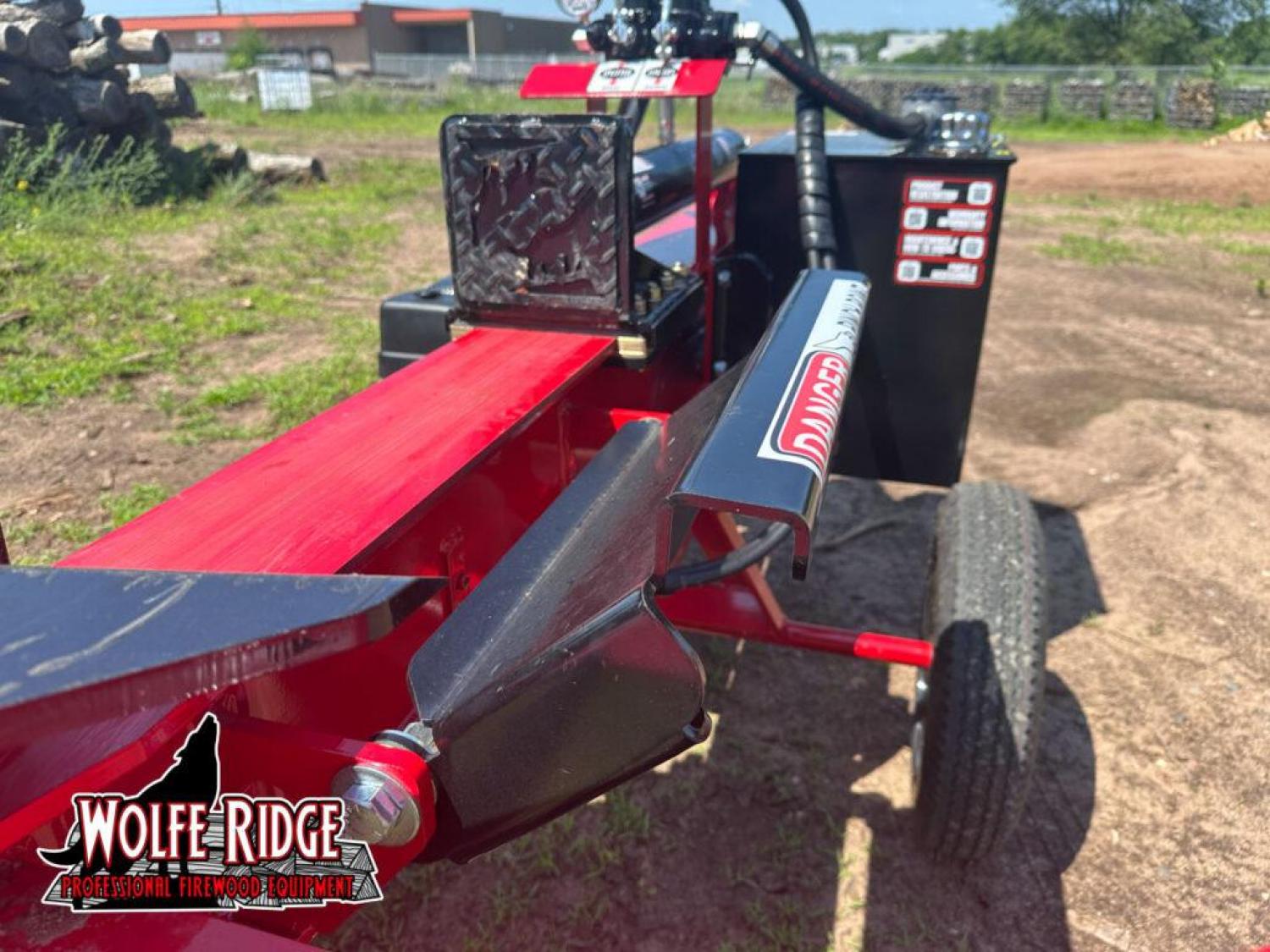

- MANUAL bolt-on 4 way wedge with multiple height positions
- Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
- 1 year warranty on machine – 3 year on engine
- Tech Specs

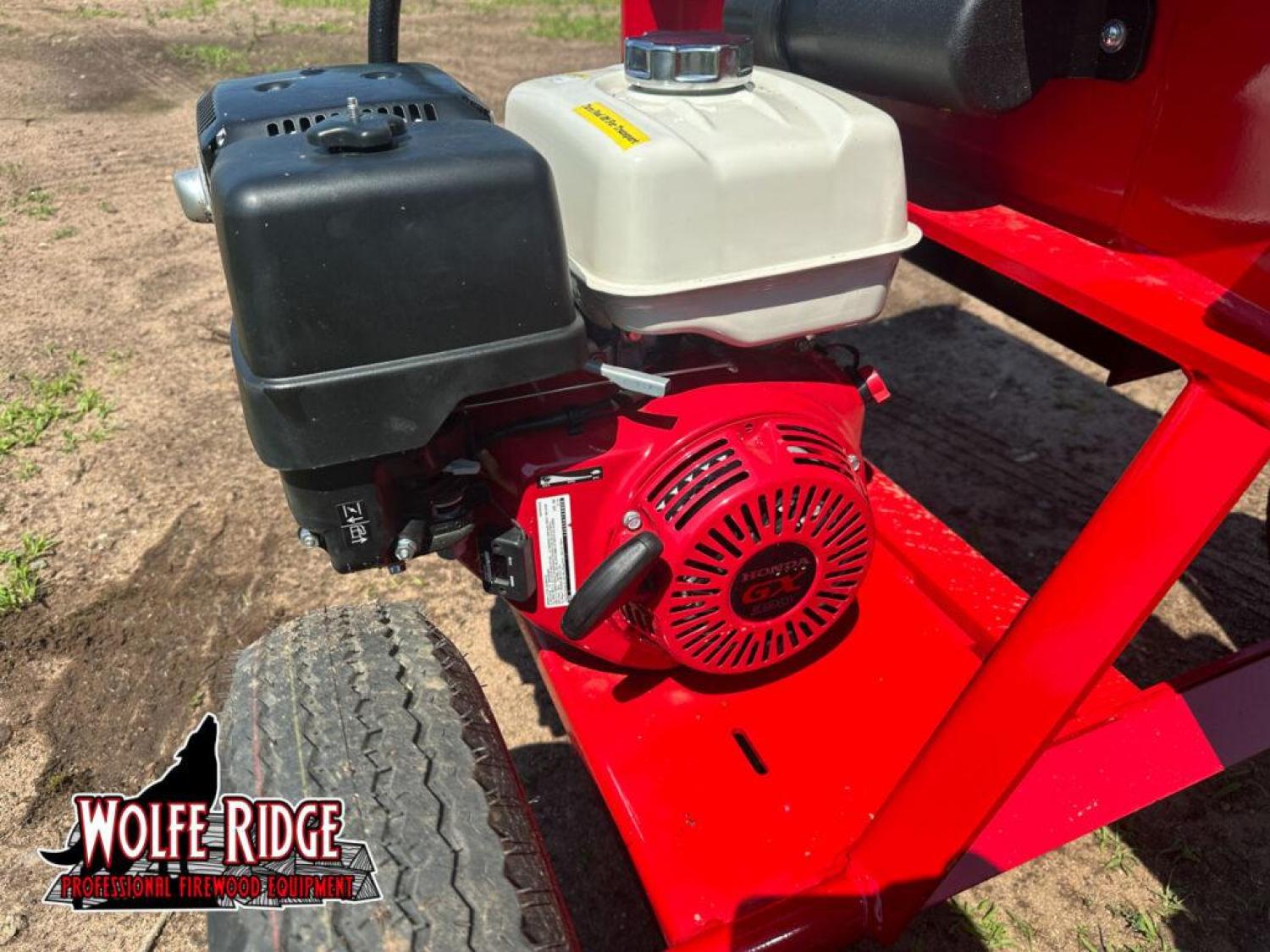

- Honda GX390 13HP engine
- Recoil pull start

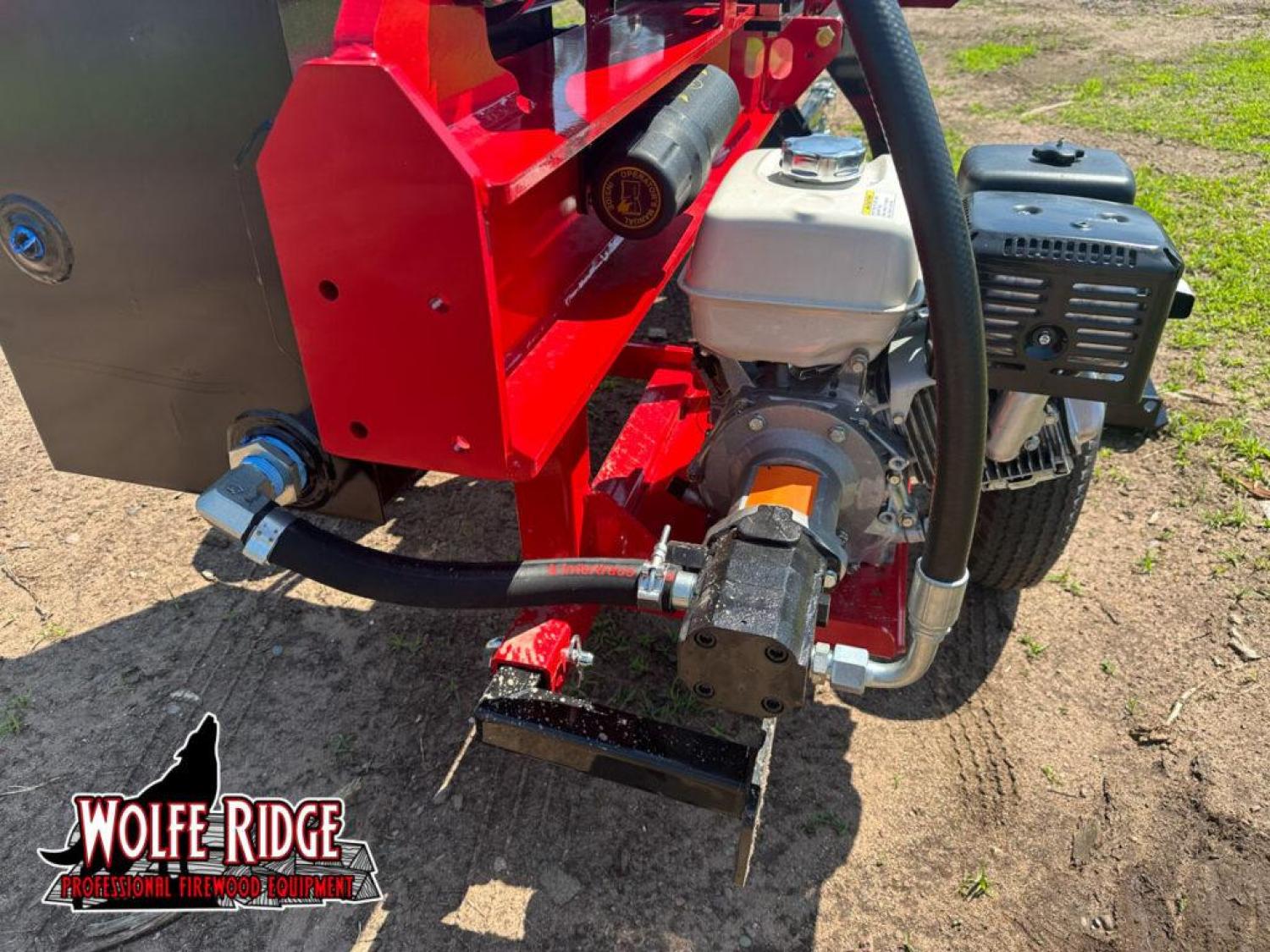

- 22 GPM hydraulic pump

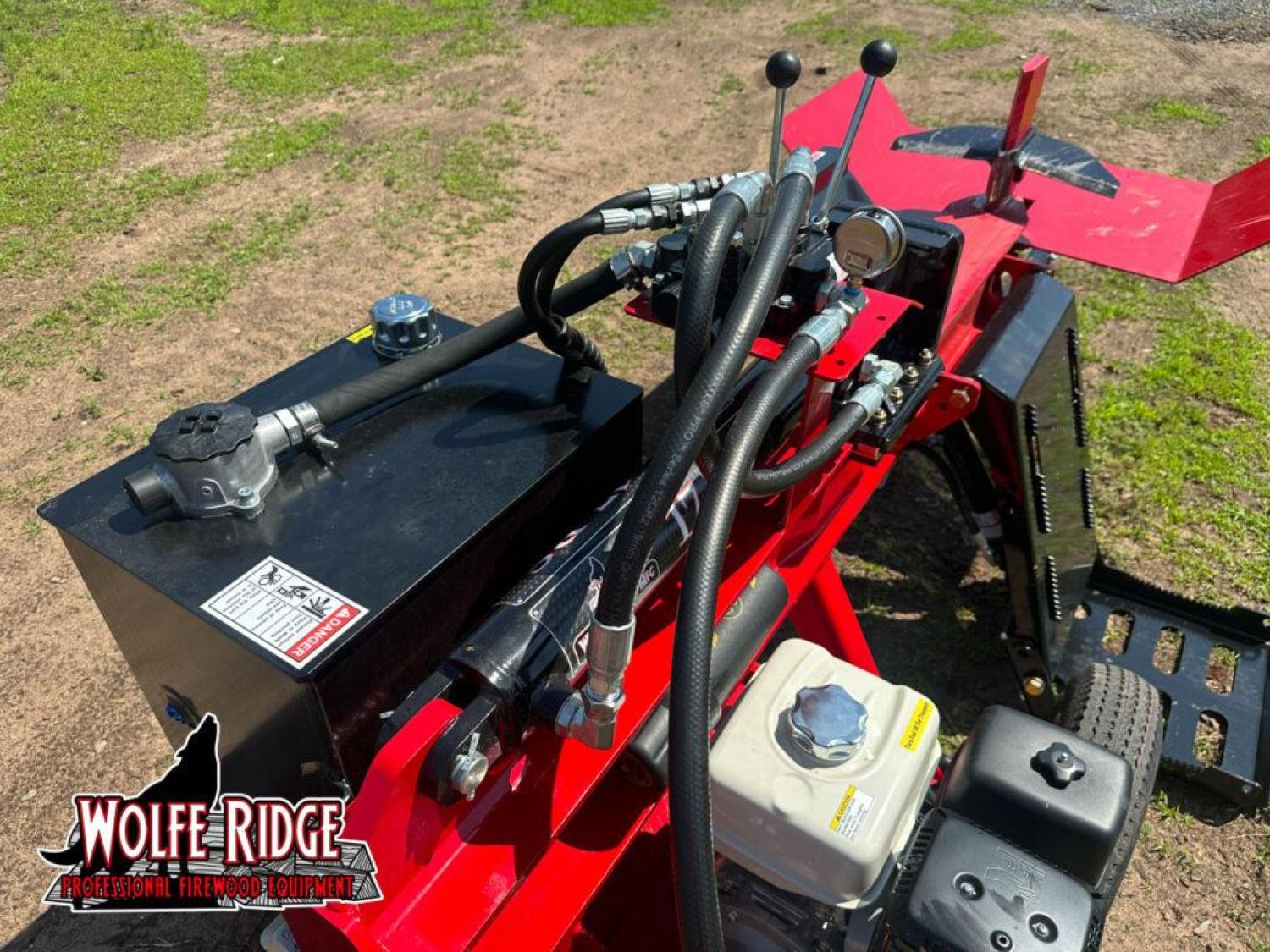

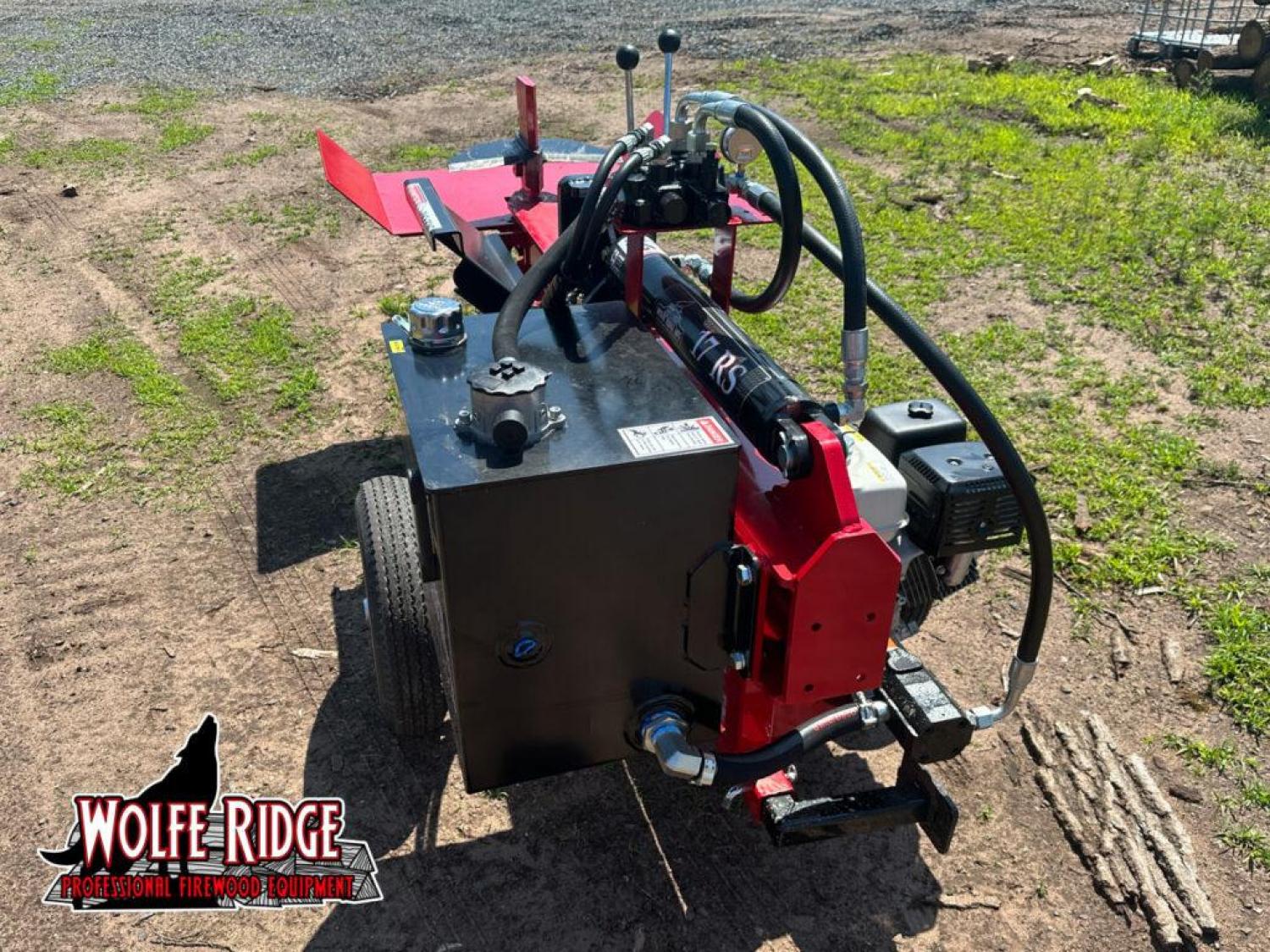

- 25 gallon hydraulic tank with cartridge return filter
- Prince auto cycle valve OR hydraulic log lift include – 450lb lift capacity *

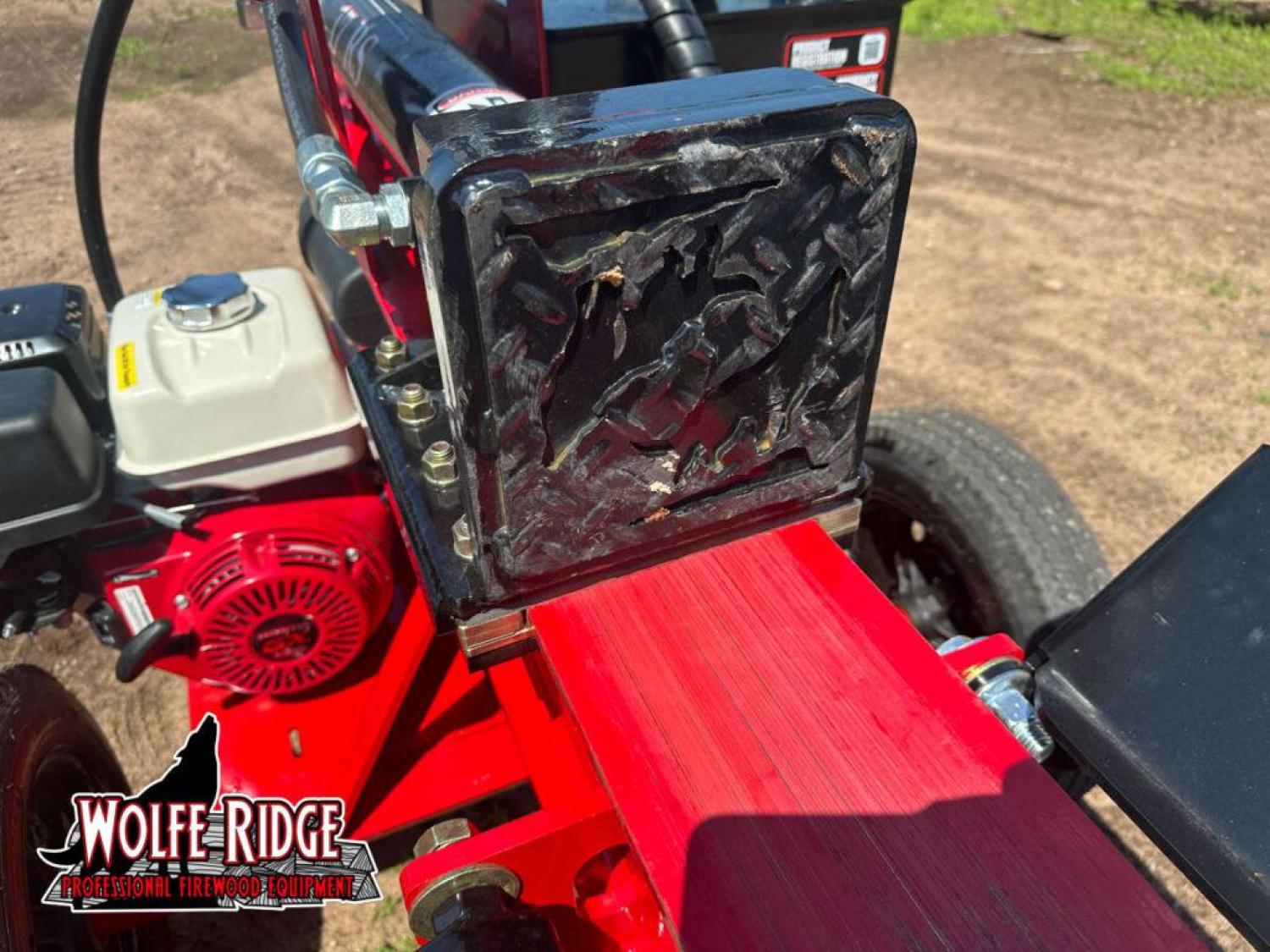

- Bronze self lube slides on push block
- In-house welded & fabricated splitter beam
- 31 inch beam height
- 24 inch stroke length
- Manual bolt-on wedge height adjustment

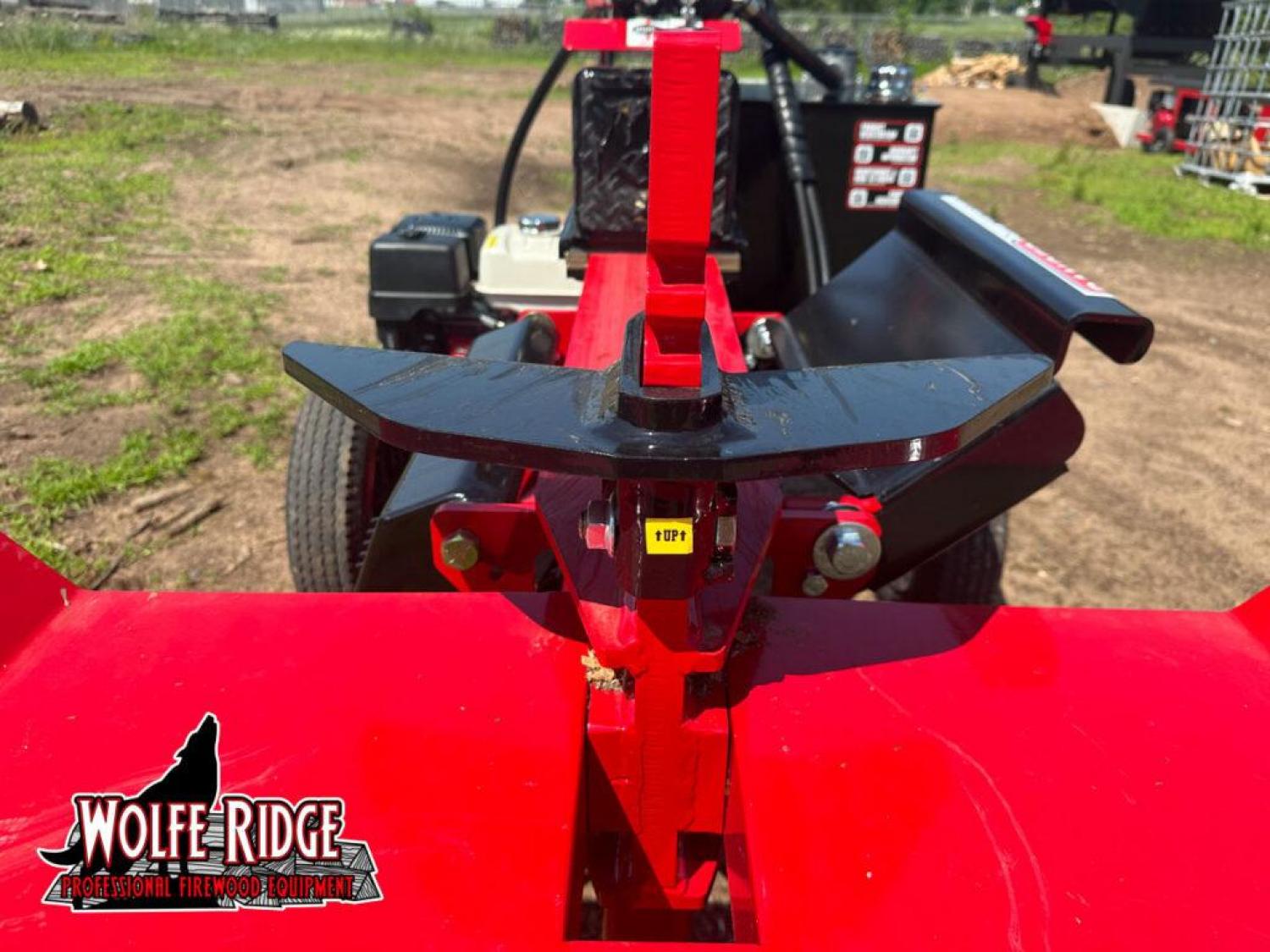

- Removable 4 way wedge included (6 way optional)
- Removable drawbar with 2 inch hitch ball coupler
- 45 MPH recommended max towing speed
- 4.8″ x 12″ rims, 21” radial tires, Dexter hubs and spindles
- Fits into pick up truck bed or small trailer, 4′ x 8′ overall size
- Weight: 1,175 LB.
- * Available with auto cycle valve OR log lift. If you would like a machine with BOTH these features, please look into our 28 Pro or higher level models. *
